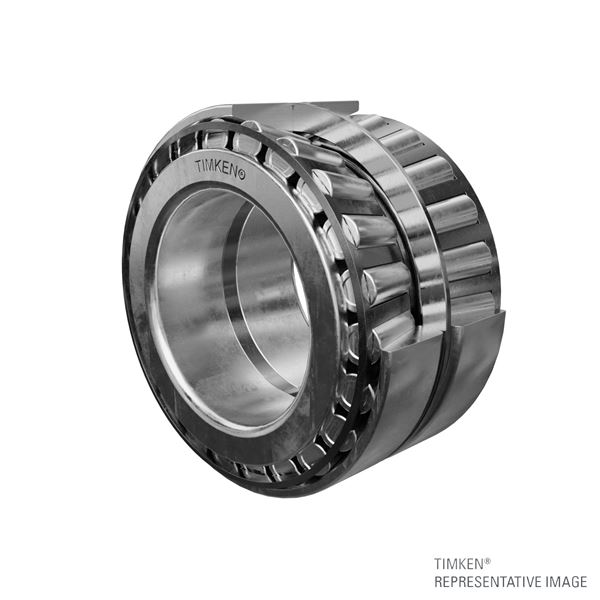

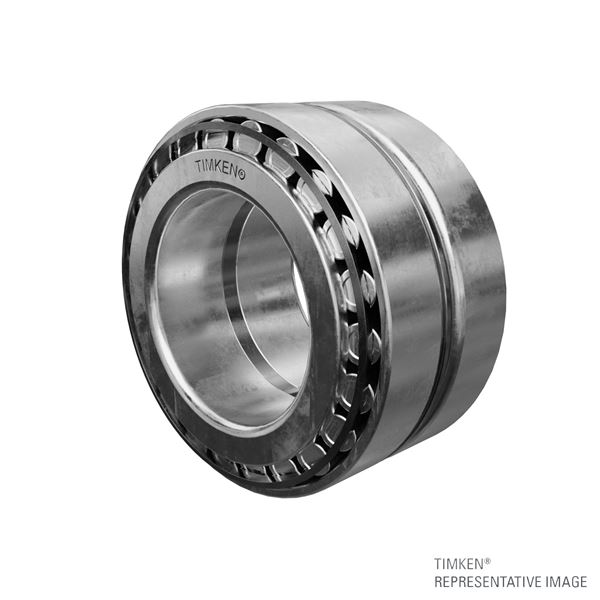

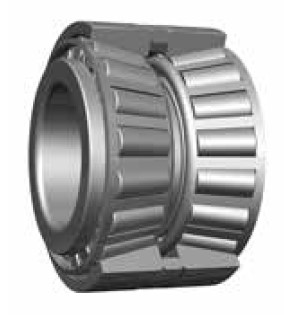

Tapered Roller Bearings - 2TS-IM (Matched Bearing Assembly, Indirect Mount)
Request Information
Unit of Measure

Specifications

Cone Part Number

 N/A L68149

Cup Part Number

 N/A L68111

Inner Spacer Part Number

 N/A K154145R

Outer Spacer Part Number

 N/A L68111EC

Design Unit

 N/A Inch

Dimensions

d - Bore

 N/A 1.3775 in34.989 mm

D - Cup Outer Diameter

 N/A 2.3612 in59.974 mm

T - Width

 N/A 1.406 in35.712 mm

C - Width

 N/A 1.0960 in27.838 mm

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius1 N/A 0.14 in3.560 mm
r - Cup Backface "To Clear" Radius2 N/A 0.020 in0.40 mm

db - Cone Backface Backing Diameter

 N/A 1.79 in45.5 mm

Da - Cup Frontface Backing Diameter

 N/A 2.24 in55.90 mm

Basic Load Ratings

C90 - Dynamic Radial Rating (90 million revolutions)3 N/A 2650 lbf11800 N
C1 - Dynamic Radial Rating (1 million revolutions)4 N/A 17800 lbf79200 N
Ca90 - Dynamic Thrust Rating (90 million revolutions)5 N/A 1890 lbf8400 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)6 N/A 4620 lbf20500 N

Factors

K - Factor7 N/A 1.4
e - ISO Factor8 N/A 0.42
Y1 - ISO Factor9 N/A 1.62
Y2 - ISO Factor10 N/A 2.42
  • 1 These maximum fillet radii will be cleared by the bearing corners.
  • 2 These maximum fillet radii will be cleared by the bearing corners.
  • 3 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values.
  • 4 Based on 1 x 106 revolutions L10 life, for the ISO life calculation method.
  • 5 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values for a single-row, C90(2) is the two-row radial value.
  • 6 Based on 90 x 106 revolutions L10 life, for The Timken Company life calculation method. C90 and Ca90 are radial and thrust values for a single-row, C90(2) is the two-row radial value.
  • 7 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
  • 8 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
  • 9 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
  • 10 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
